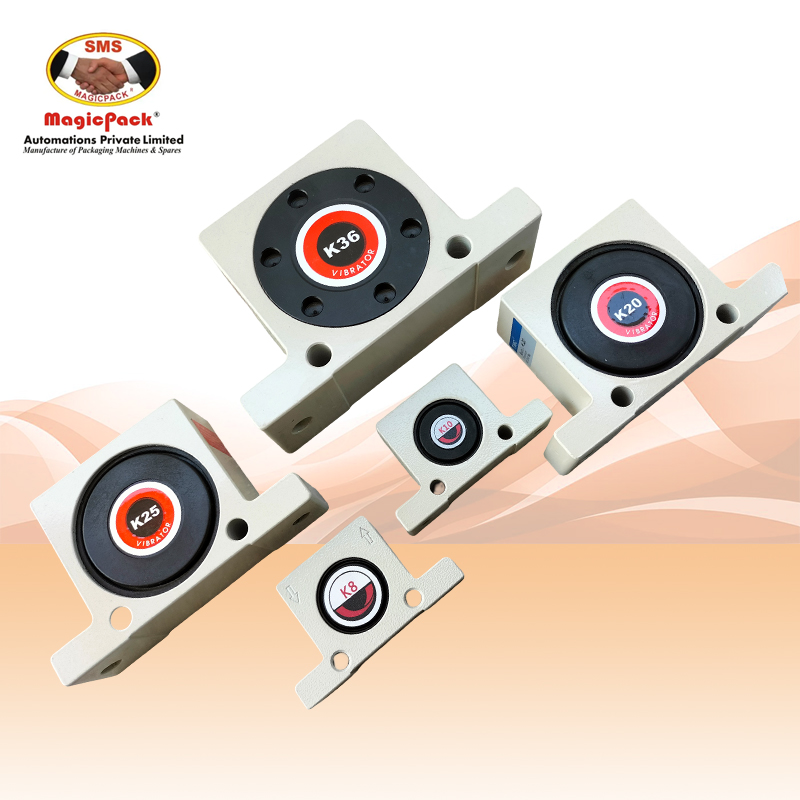

Get Your Materials Moving with a Solid Pneumatic Vibrator
Nothing kills productivity faster than material getting stuck in a hopper or bin. If you have issues with clogging or uneven material flow, our Pneumatic Vibrator is the fix you’ve been looking for.
At MAGICPACK AUTOMATIONS PVT LTD, we make vibrators that help industries handle materials easily. These vibrators make it easier to move bulk materials in hoppers, silos, or chutes, so your processes don’t slow down. They use compressed air to create the kind of vibration that breaks surface tension instantly.
We’ve earned our reputation as Pneumatic Vibrator manufacturers in India by building stuff that actually survives the dust and heat of a real factory. You won't find any over-engineered fluff here—just a rugged, dependable tool that keeps your lines moving 24/7 without needing a break.
Technical Data
Technical Data
| Model | Vibrations 1000 rpm |
Centrifugal force N |
Air consumption l/min |
|||
| 2 bars | 6 bars | 2 bars | 6 bars | 2 bars | 6 bars | |
| K-8 | 25.5 | 35 | 130 | 360 | 83 | 195 |
| K-10 | 22.5 | 34 | 250 | 710 | 92 | 200 |
| K-13 | 15 | 22.5 | 320 | 870 | 94 | 225 |
| K-16 | 13 | 19.5 | 450 | 1100 | 122 | 280 |
| K-20 | 10.5 | 16.5 | 720 | 1720 | 130 | 340 |
| K-25 | 9.2 | 14 | 930 | 2050 | 160 | 425 |
| K-30 | 7.8 | 12.5 | 1510 | 3210 | 215 | 570 |
| K-36 | 7.3 | 10 | 2060 | 4050 | 260 | 675 |
Sizes and weights in mm and g
| Model | A | Width | C | D | E | F | G | H Thread BSP |
Weight g |
| K-8 | 50 | 20 | 86 | 68 | 12 | 7 | 40 | 1/4″ | 130 |
| K-10 | 50 | 20 | 86 | 68 | 12 | 7 | 40 | 1/4″ | 130 |
| K-13 | 65 | 24 | 113 | 90 | 16 | 9 | 50 | 1/4″ | 260 |
| K-16 | 65 | 27 | 113 | 90 | 16 | 9 | 50 | 1/4″ | 300 |
| K-20 | 80 | 33 | 128 | 104 | 16 | 9 | 60 | 1/4″ | 530 |
| K-25 | 80 | 38 | 128 | 104 | 16 | 9 | 60 | 1/4″ | 630 |
| K-30 | 100 | 44 | 160 | 130 | 20 | 11 | 80 | 3/8″ | 1130 |
| K-36 | 100 | 50 | 160 | 130 | 20 | 11 | 80 | 3/8″ | 1340 |
Know More
Features & Applications
Key Features
- High-strength aluminum alloy body
- No lubrication required for most models
- Adjustable frequency via air pressure
- Explosion-proof and safe for hazardous areas
- Low noise levels during operation
- Compact size for easy mounting
- Resistant to extreme temperatures
- Long service life with minimal wear
- High force-to-weight ratio
Various Applications
- Hopper and silo emptying
- Compacting materials in containers
- Screen and filter cleaning
- Feeding and conveying lines
- Foundry sand shaking
- Concrete consolidation
- Chemical powder processing
- Food and grain handling
- Parts feeding in assembly lines
Why Our Pneumatic Vibrator Is Best?
Efficiency isn’t just about speed; it’s about not having to worry about your equipment failing. Our vibrators are made from durable components and quality materials. For those smaller jobs where you need high-speed movement, our Ball vibrator works wonders without using much air.
If you’re dealing with much heavier loads, our Industrial Pneumatic Ball Vibrators provide that extra punch needed to clear out thick or sticky materials.
As one of the leading Pneumatic Vibrator suppliers in India, we make sure our gear is easy to mount and even easier to maintain. You get an explosion-proof, low-noise solution that fits right into your existing system. At MAGICPACK, we focus on the small details so you can focus on hitting your production targets. If you need a customized product according to your requirements, contact us now.
