Get Durable Vibratory Feeder for Smooth Material Flow

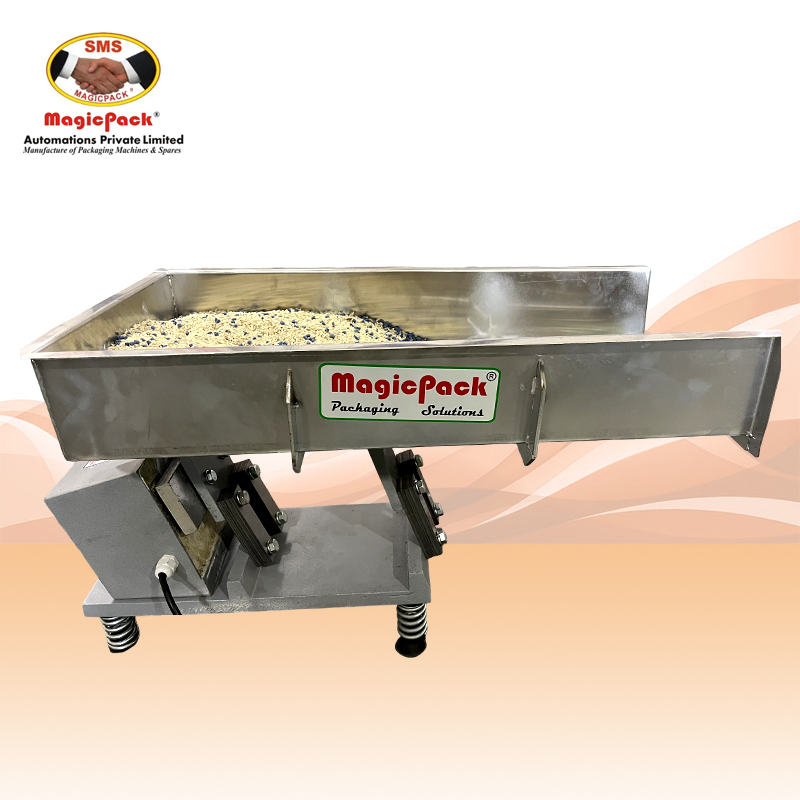

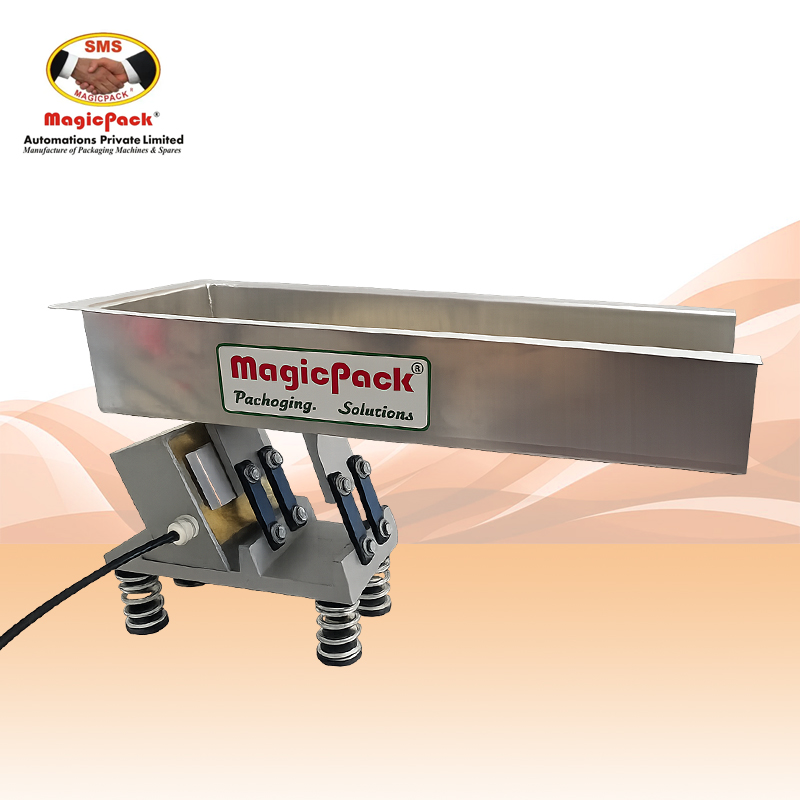

A vibratory feeder is a simple machine used in packaging and automation lines to move materials from one place to another in a controlled way. It works by creating small vibrations that gently push the material forward. Because of this vibration, items move smoothly and evenly instead of falling or getting stuck.
At MAGICPACK AUTOMATIONS PVT LTD, we build our feeder systems to make sure your grains, powders, or small parts move along smoothly without any manual intervention. These feeders work on single-phase power. As one of the top Vibratory Feeder manufacturers in India, we focus on rugged designs that work efficiently and control the flow perfectly. Our feeders are built with a strong MS body for continuous operation and stable performance, even during long production hours.
Technical Data
| Electromagnetic Vibrator Feeders Data Sheet | |||
| MODEL NO | SMS-001 | SMS-002 | SMS-003 |
| Usage | Flow Material Feeder | Flow Material Feeder | Flow Material Feeder |
| Brand | Vibracon® | Vibracon® | Vibracon® |
| Capacity | 0 to 4 ton | 0 to 6 ton | 0 to 8 ton |
| Phase | Single | Single | Single |
| Power | 230V, 50Hz | 230V, 50Hz | 230V, 50Hz |
| Material | MS Body | MS Body | MS Body |
| Coil Voltage | 220 V | 220 V | 220 V |
| Dimension Body | H220 × W310 × L240 mm | H250 × W150 × L350 mm | H300 × W185 × L400 mm |
| Dimension Tray | H80 × W160 × L400 mm | H100 × W205 × L500 mm | H100 × W205 × L600 mm |
| Current | 3 Amp | 5 Amp | 8 Amp |
| Warranty | 12 Months | 12 Months | 12 Months |
| Weight | 5 Kgs | 7.3 Kgs | 16.5 Kgs |
| Minimum Order Qty | 1 No | 1 No | 1 No |
| Packing Type | Corrugated Box Standard | Corrugated Box Standard | Corrugated Box Standard |
Know More
Features & Applications
Key Features
- Adjustable vibration speed
- Rugged MS body
- Stainless steel flow trays
- Low noise operation
- Heavy-duty coil system
- Dust-proof motor housing
- Very easy to clean
- Energy-efficient design
- No-clogging tray shape
- Compact footprint for tight spaces
Various Applications
- Food processing lines
- Pharmaceutical tablet counting
- Nut and bolt sorting
- Plastic granule feeding
- Chemical powder movement
- Snack food seasoning
- Glass and ceramic chips
- Seed and grain packing
- Cosmetic bottle feeding
- Small hardware assembly
Rugged and Simple Vibratory Feeder for Your Factory
If your production line keeps getting stuck because of uneven material flow, you know how frustrating it can be. We build our vibro feeders to ensure your free-flow materials move without a hitch.
Choosing the right feeder can save you a lot of money by preventing spills and wasted time. Depending on application needs, options like a linear vibratory feeder are used where straight-line movement is required. We even offer a pneumatic vibratory feeder for specific setups.
As reputed Vibratory Feeder suppliers in India, we provide a full warranty because we trust our engineering. When you buy from MAGICPACK, you are investing in a tool that helps your packing machines run at full speed without any hiccups. If you need a customized product, contact us now to share your specific requirements.
