Boost Your Machine Accuracy with a Reliable Vibration Controller
A vibration controller is mainly used to control vibration levels in machines where vibrator coils are installed. At MAGICPACK AUTOMATIONS PVT LTD, our controllers are developed keeping actual factory usage in mind. We work as practical vibration controller manufacturers in India, focusing more on performance and safety than fancy features.
As reliable vibration controller manufacturers in India, we deliver industrial-grade gear that helps small businesses scale up and large plants stay efficient. When you use our tech, you can finally stop worrying about constant manual adjustments. We focus on smooth, linear, and stable control so machines run without unnecessary stress. Also, we provide a cuh variable voltage digital controller that offers smooth, step-less control, making it easier than ever to match your feed rate to your packaging speed.
Technical Data
| Electromagnetic Vibrator Controller Data Sheet | ||||
| MODEL NO | Vibracon IV / IV Digital |

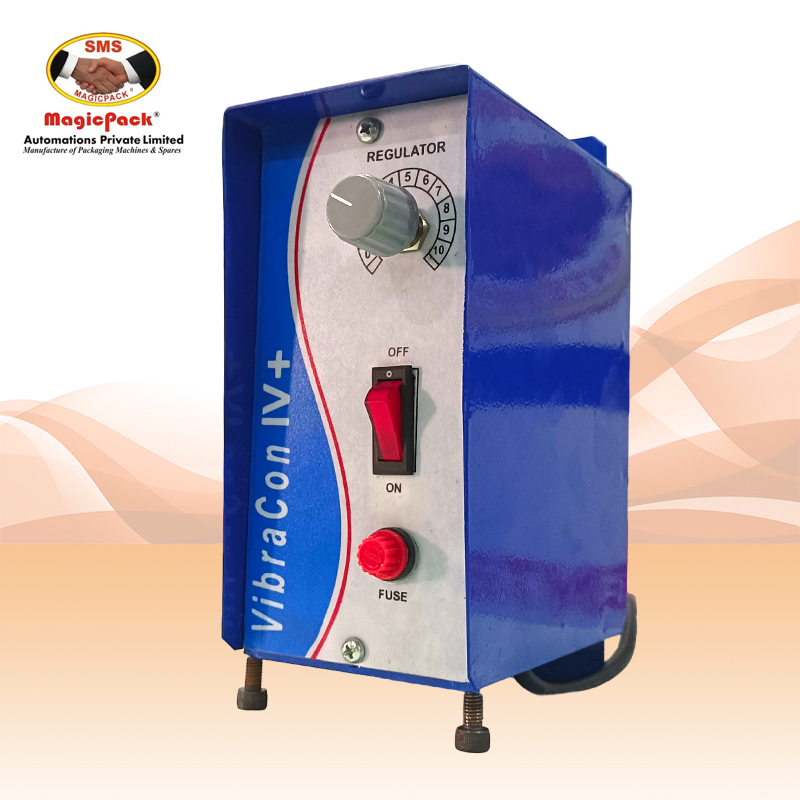

Vibracon IV+ | Vibracon 10 / 10 Digital |

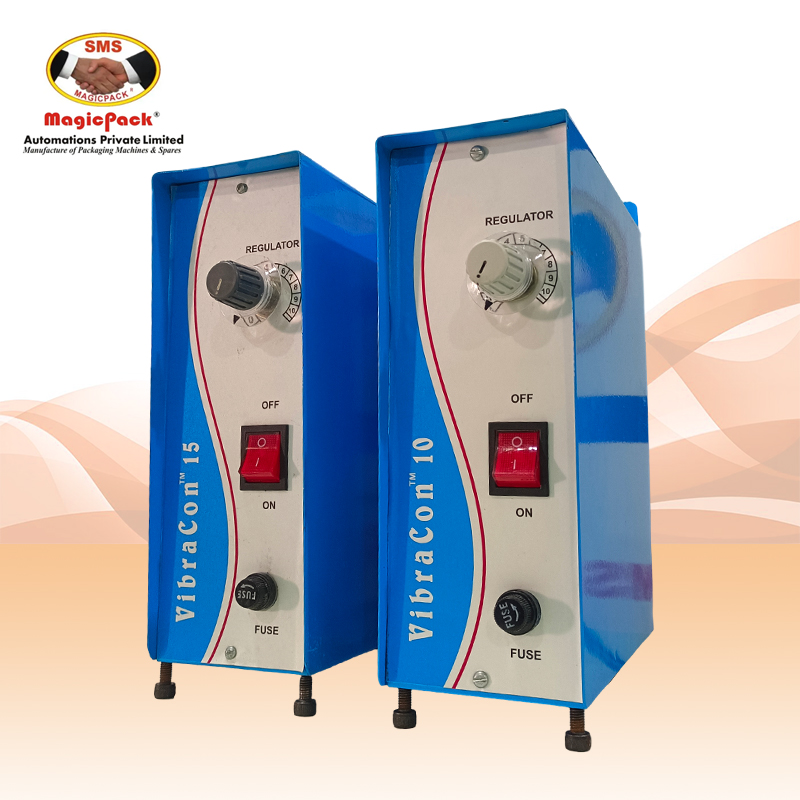

Vibracon 15 |
| Usage | Vibrator Feeder | Vibrator Feeder | Vibrator Feeder | Vibrator Feeder |
| Brand | Vibracon® | Vibracon® | Vibracon® | Vibracon® |
| Model | Vibracon IV | Vibracon IV+ | Vibracon 10 | Vibracon 15 |
| Automation Grade | Automatic | Automatic | Automatic | Automatic |
| Usage / Application | To Vibrate Feeder | To Vibrate Feeder | To Vibrate Feeder | To Vibrate Feeder |
| Enclosure | MS | MS | MS | MS |
| Material | MS | MS | MS | MS |
| Packaging Type | Standard | Standard | Standard | Standard |
| Power Supply | 230 V AC | 230 V AC | 230 V AC | 230 V AC |
| Voltage | 230 V AC | 230 V AC | 230 V AC | 230 V AC |
| Is it Portable | YES | YES | YES | YES |
| Dimension | 85 × 100 × 210 mm | 85 × 140 × 210 mm | 90 × 210 × 285 mm | 90 × 210 × 285 mm |
| Operating Frequency | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Current | 5 Amp | 5 Amp | 10 Amp | 15 Amp |
Know More
Features & Applications
Key Features
- Designed for inductive loads like vibrator coils
- Delivers linear and stable control
- In-built Soft Start for jerkless vibration
- Overheat and short-circuit protection
- Motor overload protection via a replaceable glass fuse
- Adjustable Min & Max vibration limits
- Clear digital display for real-time monitoring
- Smooth digital voltage regulation
- Heavy-duty casing for dusty environments
- Highly resistant to electrical interference
Various Applications
- Automated packaging and sorting lines
- Linear and bowl feeder systems
- Pharmaceutical dosing and counting
- Food processing and bagging
- Chemical powder dosing
- Pharmaceutical tablet counting
- Food processing and snack packaging
- Plastic granule conveying
- High-frequency material conveying
- Hopper and silo discharge management
- Weighing and filling stations
Why Our Vibration Controller is the Top Choice for Your Floor
Running a factory is tough enough without worrying about blown motors. That is why our vibration controller includes motor overload protection using an easily replaceable glass fuse—saving you from expensive repairs. We know that every material behaves differently, so we’ve included on-board adjustable Min and Max limits to give you total control over the vibration intensity. While many people check the vibracon vibrator price, the real value lies in the controller that runs it efficiently.
With clear Power-On indications and an enable/disable input for frequent on-off tasks, we give you a user-friendly experience that simply works. We make sure your automation is smart, safe, and built to last. As established vibration controller suppliers in India, we make sure our products are easy to wire up and even easier to use daily. It’s reliable, it’s cost-effective, and it’s built to last.
